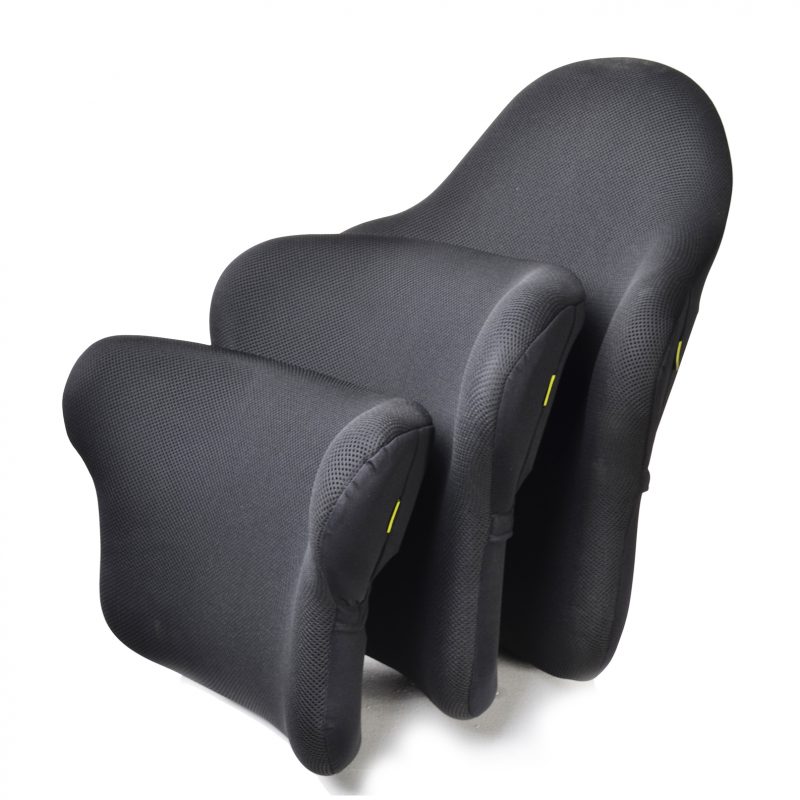

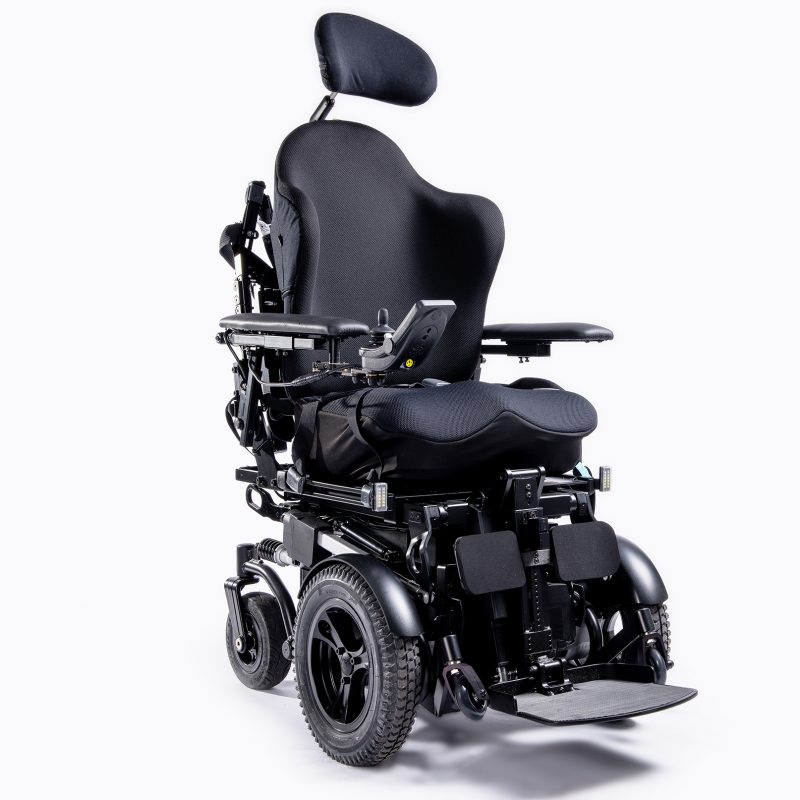

Deep Contour High backrest
The Deep Contour Wheelchair backrest range uses original adjustment combined with a specially extended lateral designed to further support the user. The deep contour forms to the user offering dynamic lateral support.
- 60cm / 56cm high
Key features:
- Integral adjustable width/lateral support
- Integral adjustable Deep contour 13-18 cm
- Integral adjustable lumbar support
- Unique shaping built into the backrest

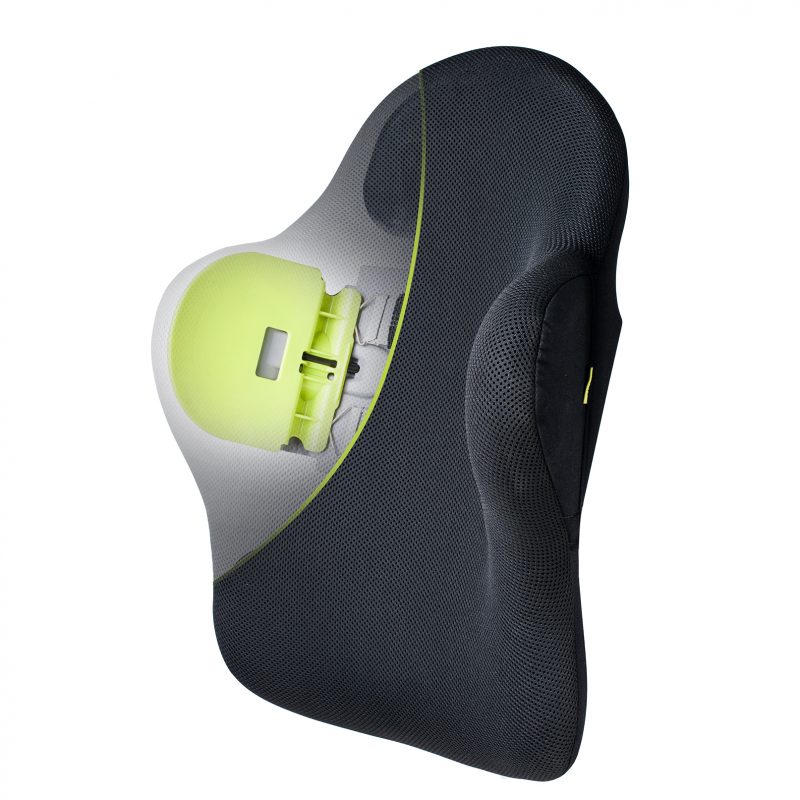

Lateral support
Integral laterals provide support exactly where you need it.

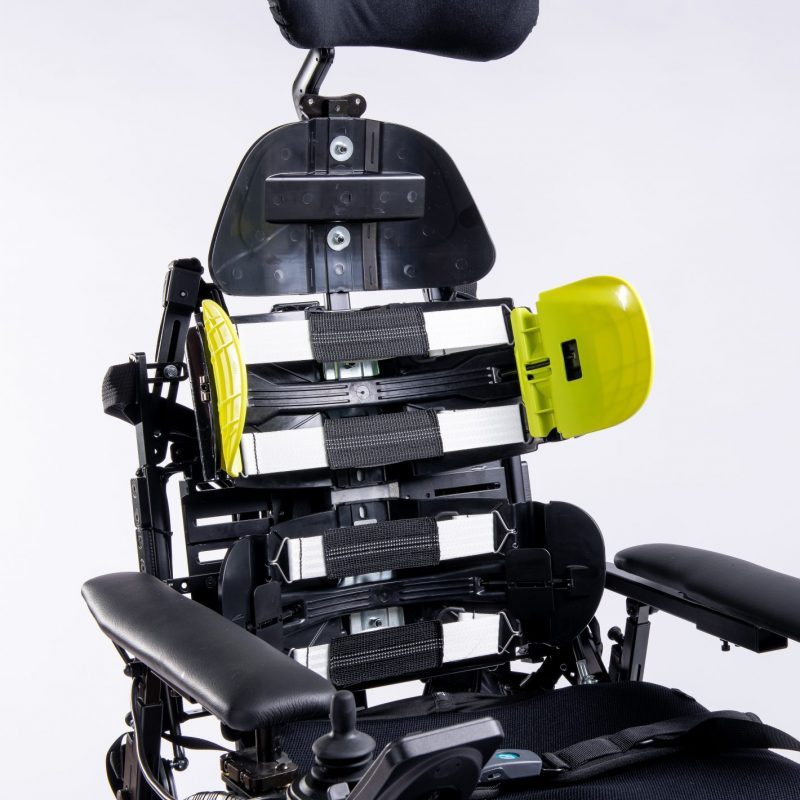

The unique integral lateral supports provide precise and adjustable support at thoracic and/or pelvic level.
Simply adjusted
This is simply adjusted while the client is in the chair with a 4mm Allen key.

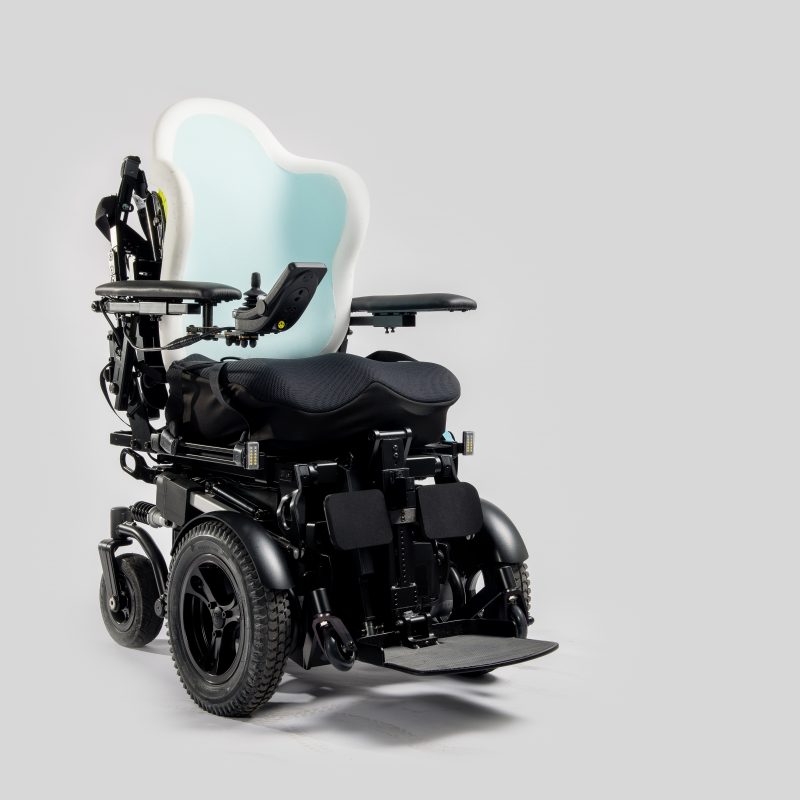

Shaping
The adjustments of the backrest are built into the product allowing for the minute adjustments needed to provide ultimate comfort. All adjustments can be modified as the body changes and adjusted while the user is in the chair.
Hardware

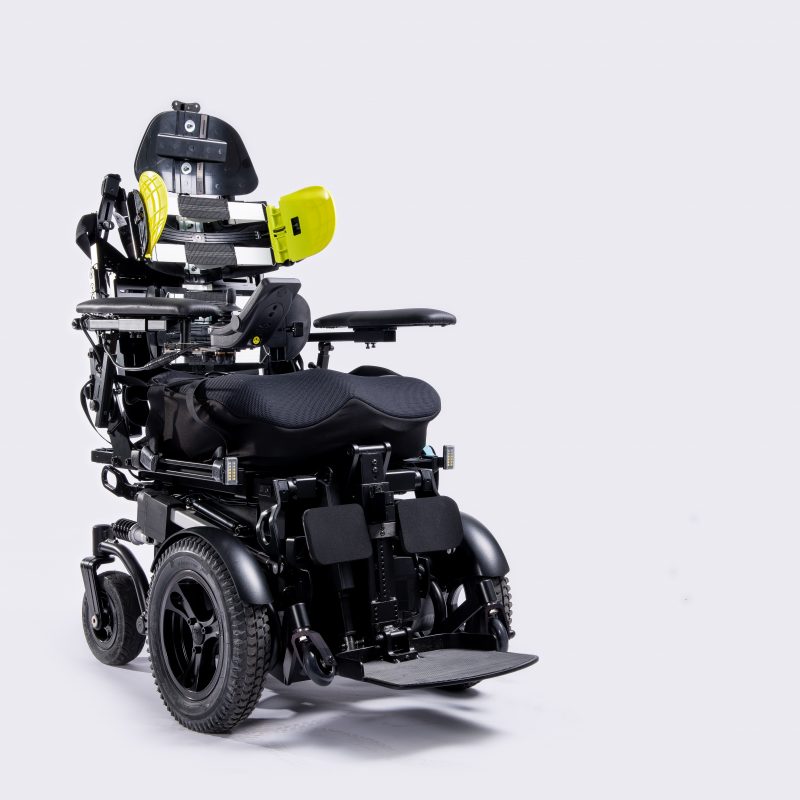

Together with the V-Trak mounting and positioning hardware, is the only integrated system to deliver total freedom to place the perfect shape of backrest in any position in relation to the seat and wheelchair.
The V-Trak hardware range allows simple Fitting to virtually any wheelchair in
common use.
Breathable material
The backrest has black spacer fabric as standard.
The 3D material construction reduces heat build-up, allows consistent air circulation and provides high moisture transfer.
Geometry & Downloads
| Alternative option within this range. | ||||
| Product Code | Height (cm) | Width (cm) | Contour Debth (cm) | Weight (kg) |
| AXDH-M | 56 | 34 >44 | 10>16 | 2.60 |
| AXDH-L | 60 | 35>50 | 10>16 | 2.84 |
| AXDH-XL | 60 | 43>55 | 10>18 | 2.08 |
| AXDH-XL | 60 | 52>60 | 10>18 | 3.22 |
| Alternative option within this range. | ||||
| Product Code | Height (cm) | Width (cm) | Contour Debth (cm) | Weight (kg) |
| AXDHR-M | 51 | 34 >44 | 10>16 | 2.42 |
| AXDHR-L | 53 | 35>50 | 10>16 | 2.54 |
| AXDHR-XL | 53 | 43>55 | 10>18 | 2.76 |
| AXDHR-XXL | 53 | 52>60 | 10>18 | 2.88 |
